Implementing p-adic numbers in Macaulay2 using its foreign function interface and FLINT

https://github.com/d-torrance/macaulay2-padic
Douglas A. Torrance
Georgia Tech
ICMS 2026

What is Macaulay2?

Macaulay2 is a computer algebra system for research in algebraic geometry and commutative algebra.

It supports computations in a wide variety of rings:

  • $\mathbb Z$, $\mathbb Q$, $\mathbb R$, $\mathbb C$, $\mathbb F_{p^k}$
  • polynomial rings
  • quotient rings
  • local rings, fraction fields

What's missing?

The $p$-adics $\mathbb Q_p$ (prime $p$) $$\sum_{n=k}^\infty a_n p^n = a_k p^k + a_{k + 1}p^{k + 1} + \cdots$$ $$a_n\in\{0,\ldots,p-1\}$$

Arithmetic

Addition and multiplication are defined in the usual way in base $p$, but carrying may continue indefinitely.

\[ \begin{array}{rl} &6\cdot7^0 + 6\cdot7^1 + 6\cdot7^2 + \cdots \\ +&1\cdot7^0 \\ \hline \end{array} \]
\[ \begin{array}{rl} &6\cdot7^0 + 6\cdot7^1 + 6\cdot7^2 + \cdots \\ +&1\cdot7^0 \\ \hline &\textcolor{#d1495b}{7\cdot7^0} \end{array} \]
\[ \begin{array}{rl} &6\cdot7^0 + 6\cdot7^1 + 6\cdot7^2 + \cdots \\ +&1\cdot7^0 \textcolor{#859900}{+ 1\cdot7^1} \\ \hline &\textcolor{#859900}{0\cdot7^0} \end{array} \]
\[ \begin{array}{rl} &6\cdot7^0 + 6\cdot7^1 + 6\cdot7^2 + \cdots \\ +&1\cdot7^0 + 1\cdot7^1 \\ \hline &0\cdot7^0 + \textcolor{#d1495b}{7\cdot7^1} \end{array} \]
\[ \begin{array}{rl} &6\cdot7^0 + 6\cdot7^1 + 6\cdot7^2 + \cdots \\ +&1\cdot7^0 + 1\cdot7^1 \textcolor{#859900}{+ 1\cdot7^2} \\ \hline &0\cdot7^0 \textcolor{#859900}{+ 0\cdot7^1} \end{array} \]
\[ \begin{array}{rl} &6\cdot7^0 + 6\cdot7^1 + 6\cdot7^2 + \cdots \\ +&1\cdot7^0 + 1\cdot7^1 + 1\cdot7^2 \\ \hline &0\cdot7^0 + 0\cdot7^1 + \textcolor{#d1495b}{7\cdot7^2} \end{array} \]
\[ \begin{array}{rl} &6\cdot7^0 + 6\cdot7^1 + 6\cdot7^2 + \cdots \\ +&1\cdot7^0 + 1\cdot7^1 + 1\cdot7^2 + \cdots \\ \hline &0\cdot7^0 + 0\cdot7^1 + 0\cdot7^2 + \cdots \end{array} \]

$\implies$ in $\mathbb Q_7$, $$-1 = 6\cdot 7^0 + 6\cdot 7^1 + 6\cdot 7^2 + \cdots$$

p-adic valuation

If $x\in\mathbb Q_p$, then $\nu_p(x)$ is the smallest exponent with a nonzero coefficient in this expansion.

e.g., $\nu_7(-1) = 0$.

p-adic absolute value

If $x\in\mathbb Q_p$, then $$|x|_p = p^{-\nu_p(x)}$$ $\mathbb Q_p$ is the completion of $\mathbb Q$ under $|\cdot|_p$ just as $\mathbb R$ is the completion of $\mathbb Q$ under the usual absolute value $|\cdot|$.

p-adic integers

$\mathbb Z_p = \{x\in\mathbb Q_p:\nu_p(x) \geq 0\}$ is a ring.

Its units are $\mathbb Z_p^\times = \{x\in\mathbb Q_p:\nu_p(x) = 0\}.$

Representing p-adics

If $x\in\mathbb Q_p$ is nonzero with $\nu_p(x)=k$, then $$x = \sum_{n=k}^\infty a_n p^n = \left(\sum_{n=0}^\infty a_{n+k}p^n\right)p^k = up^k$$ Note: $u\in\mathbb Z_p^\times$

Precision

Just like $\mathbb R$, we can't hope to store all the digits of an element of $\mathbb Q_p$ in a computer. So we choose some precision $N$ and restrict to $x = up^k$ with $$u = \sum_{n=0}^{N-1}a_{n+k}p^n$$ $\implies$ Represent $x$ using $u,p,k,N\in\mathbb Z$

FLINT

FLINT (Fast Library for Number Theory) is a C library that Macaulay2 already links against. It implements $p$-adics using:

  • padic_t: $u$ (fmpz_t), $k$, $N$ (long)
  • padic_ctx_t: $p$ (fmpz_t)

Note: New alternate $p$-adic implementation in FLINT 3.6.0 (released June 29) — not yet supported in M2

Connecting FLINT w/ Macaulay2

Now: Using the ForeignFunctions package (libffi), we can call the FLINT $p$-adic functions without recompiling Macaulay2. (con: no matrices or polynomials)

TODO: Add FLINT $p$-adic support to the Macaulay2 engine to get matrices and polynomials working.

Memory allocation

Macaulay2 uses the Boehm-Demer-Weiser garbage collector and FLINT has its own functions for memory allocation and deallocation.
needsPackage "ForeignFunctions"
flint = openSharedLibrary "flint"
padicInit = foreignFunction(flint, "padic_init", void, voidstar)
padicClear = foreignFunction(flint, "padic_clear", void, voidstar)
y = getMemory(3 * size long)
padicInit y
registerFinalizer(y, padicClear)

Object-oriented design

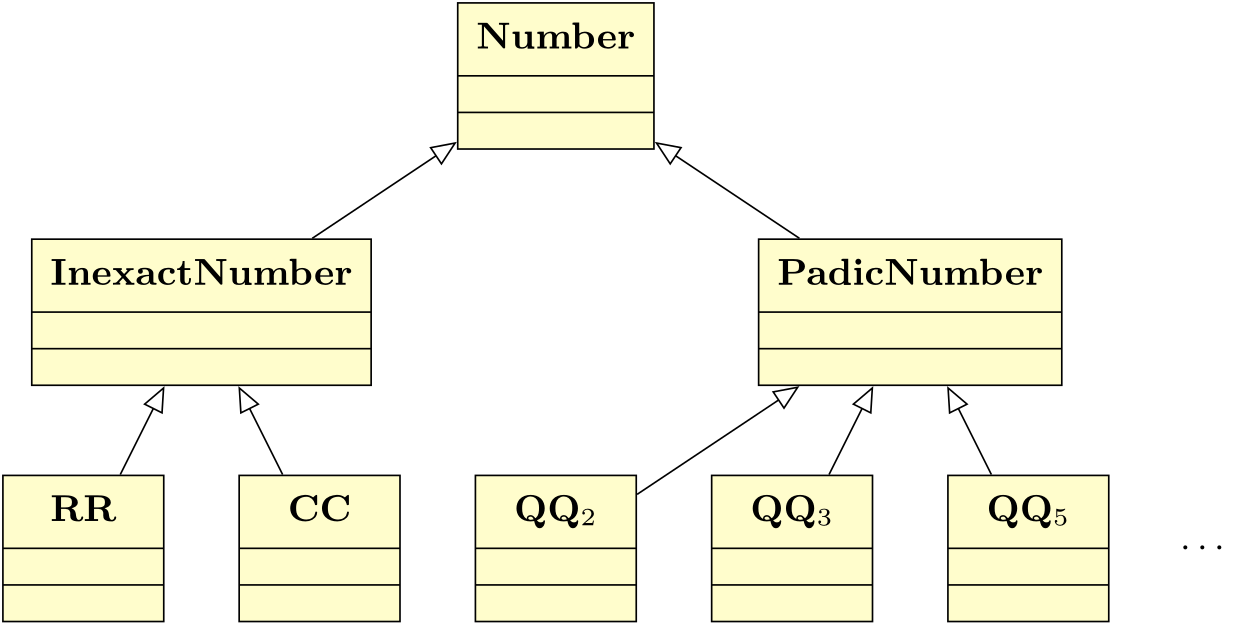

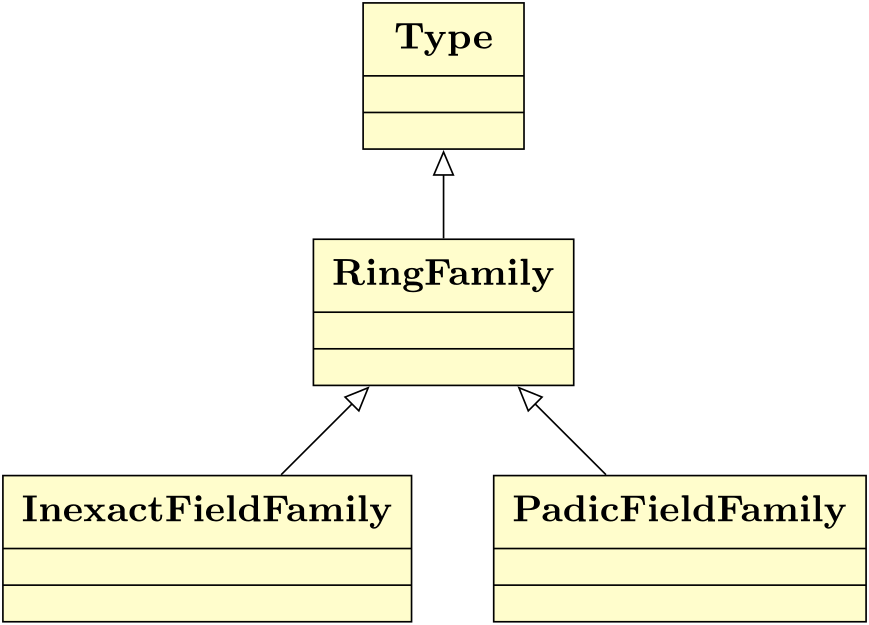

Real and complex numbers are instances of RR and CC, resp., which are instances of InexactFieldFamily. We mimic this for $p$-adics.

TODO: PadicField

i1 : class 2.0

o1 = RR

o1 : InexactFieldFamily

i2 : ring 2.0

o2 = RR
       53

o2 : RealField

There is no precision-based Ring type yet for $p$-adics since they are not supported in the engine.

Code demo

To Jupyter!
